JCVISION 98inch Luxury Version Interactive Touch Panel Smart Board For Education
Features
Flagship system
Super CPU configuration; global Internet, support one LAN cable for dual internet access; full channel support Touch USB follow.
Active "smart" pen
High quality, beautiful appearance intelligent pen, multi-system compatibility, arbitrary switch, delicate writing, PPT presentation.
Multiple meetings
1000M network, video meeting fluent transmission; support 8K video decoding, make remote video meeting easy and convenient; local meeting with comments and sharing, file content can be automatically classified.
Ultra - clear display
The 4K UI image shows the charm of feeling details. The handwriting is delicate, clear and non-jagged.
Write at random
High-precision touch; support 20-point touch, and single-point writing; support two-point zoom-out, zoom-in, drag and switch freely.
Microphone and camera
Built-in camera access, integrated smart noise reduction; microphone array to achieve far distance sound pickup, noise printing, sound source location.
Product parameters
| Specification | Type | Parameter |
| Panel | LCD size | 98" |
| Panel purchase standard | A grad |
| Light source | LED |
| Resolution | 3840 x 2160pixels |
| Brightness | 500cd/m²(typ.) |
| Contrast ration | 1300:1(typ.) |
| Pixel pitch | 0.5622 (W) x 0.5622(H) |
| Frequency | 120Hz |
| Viewing Angle | 178 °(H)/178 °(V) |
| Life span | 30,000hrs(min.) |
| Response time | 8ms |
| Color saturability | 72% |
| Visual area | 2158.848×1214.352mm |
| Display Colors | 1.06B |
| Android system properties | processor | Architecture | 64-bit architecture CPU and super G51 series GPU |
| Working frequency | 1.5GHZ |
| Number of cores | 8 cores |
| Memory | DDR4: 4GB/eMMC:32GB |
| System version | Android8.0 |
| Chip solution | Hi3751ARBCV811 |
| Power | Voltage | AC100-240V~,90-264V~50/60Hz |
| Max. power consumption | ≤500W |
| Standby power consumption | ＜0.5W |
| Speaker | 2 x 10W(max) |
| Power supply (AC) input | 100-240V |
| Power switch | Rocker switch |
| Environment | Working temperature | 0℃～40℃ |
| Storage temperature | -20℃～60℃ |
| Working humidity | 10%～90% No condensation |
| Input Interface | RJ45 N | 1 |
| Coax | 1 |
| RS232 | 1 |
| AV IN | 1 |
| YPBPR | 1 |
| PC AUDIO | 1 |
| VGA | 1 |
| VGA&DP TOUCH | 1 |
| DP | 1 |
| HDMI TOUCH | 2 |
| HDMI | 2 |
| USB FL | 1 |
| USB | 1 |
| TF | 1(Max.128g) |
| Output Interface | RJ45 OUT | 1 |
| HDMI OUT | 1 |
| Earphone | 1 |
| Specification | Type | Parameters |
| OPS (optional) | USB | USB2.0 x 2;USB3.0 x 2 |
| LAN Interface | 1 |
| HDMI OUT | 1 |
| LINE-OUT | 1 |
| MIC-IN | 1 |
| OPS DC | 12V-19V 5A | 60W |
| Front Input Interface | USB3.0(FOLLOW) | 2 |
| TOUCH-USB(motherboard expansion) | 1 |
| HDMI 2.0(motherboard expansion) | 1 |
| Structure | Net weight | 138±1kg |
| Gross weight | 198±1kg |
| Bare dimension | 2219.2 x 1339.7 x 112mm |
| Packing dimension | 2525 x 435 x 1745mm(With pallet) |
| Shell material | Aluminum alloy frame, sheet metal back cover |
| Shell color | Frame(black+silver) back(black) |
| Width of frame(T/B/L/R) | 29.4/60.6/13.8/13.8 mm |
| VESA hole site | 4-M8Screw holes 600 x 800 mm |
| Language | OSD | CN,EN etc |
| Audio-video parameters | Camera | 800WBuilt-in HD camera,3264*2448pixels |
| Microphone | Line array 6 Mic, intelligent noise reduction, sound pickup distance≦8M |
| Touch parameter | Touch specifications | Non-contact infrared sensing technology, support 20 points writing |
| Glass | | 4MM, Physical tempered Mohs level 7 explosion-proof (optional anti-glare) | | 4MM, Physical tempered Mohs level 7 explosion-proof (optional anti-glare) | |
| Glass transmittance | ＞88% |
| Frame material | Aluminum alloy frame,PCBA |
| Touch accuracy | ≤1mm |
| Touch depth | 3±0.5mm |
| Input mode | Opaque object (finger, pen, etc) |
| Theoretical hits | Same position 60 million times above |
| Light resistance | Incandescent lamp (220V, 100W), with a vertical distance of more than 350mm and solar illuminance of 90000Lux |
| Power supply | USB(USB power supply) |
| Supply voltage | DC 5.0±5% |
| Accessory | Remoter | 1 |
| Power cord | 1(1.5M) |
| Triangle fine pen | 1 |
| Operation manual | 1(A4 folding) |
| Battery | 1 |
| WIFI antenna | 1 |
| WIFI antenna | 4 |
Front interface

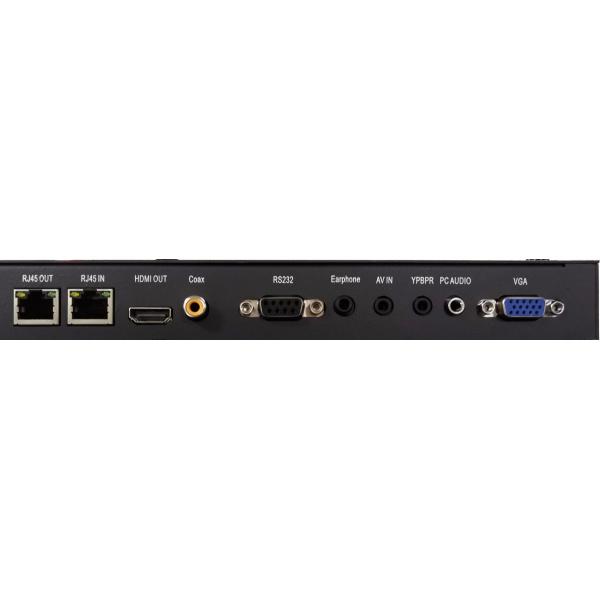

Side IO baffle
bottom IO baffle

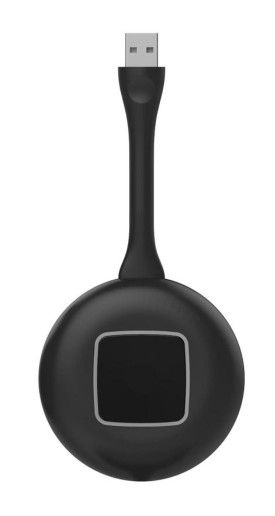

Accessories (optional)
Wall mount kit
